Estimating Employee Compensation Adjustments for Known Commuting Rates


IMPLAN estimates an in-commuting rate for all regions - the outflows of Employee Compensation (net of payroll taxes) due to people who work in the region and go home to another region. This article will show you how to see what IMPLAN estimates as the in-commuting rate and how to adjust your analysis if you have more specific information for your project. And although there are quite a few calculations to adjust for your known in-commuting rate, we have a template to ease the process!



By definition, Employee Compensation (EC) occurs at the site of employment (where operations occur). Thus, EC earned by in-commuters is still considered a Direct Effect to the Region and payroll taxes on that EC are collected in the Region. However, because it is earned by non-residents, this Commuter EC will not generate any Induced Effect in the Region. The portion of EC earned in the Region by these in-commuters, according to the in-commuting rate, is treated as a leakage in the IMPLAN model.

This is not the case for Proprietor Income (PI) in IMPLAN, as PI is always assumed to be local (no commuting rate applied). However, if you know that a portion of your Proprietor Income does in fact leak outside of the study Region, you can modify the PI value in your analysis using the same methods outlined in the article, with the one modification of using the data from the PI column in the SAM, rather than the EC column.

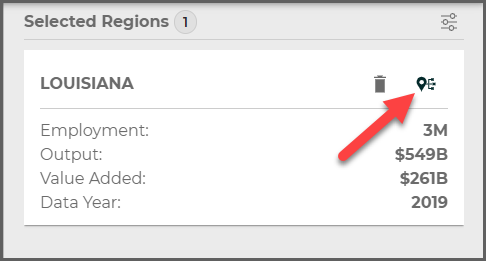

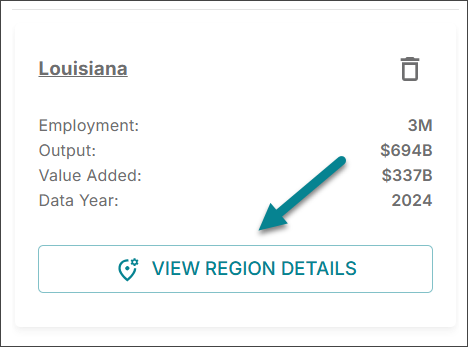

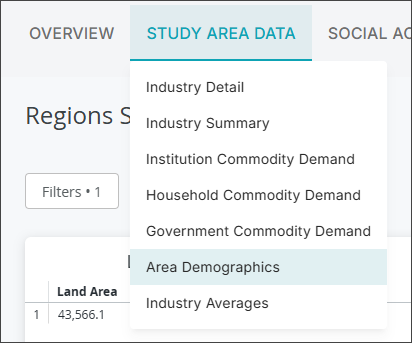

There are a few steps to figure out the in-commuting rate in IMPLAN. To start, click into Region Details to find the study area data for your region as shown below.

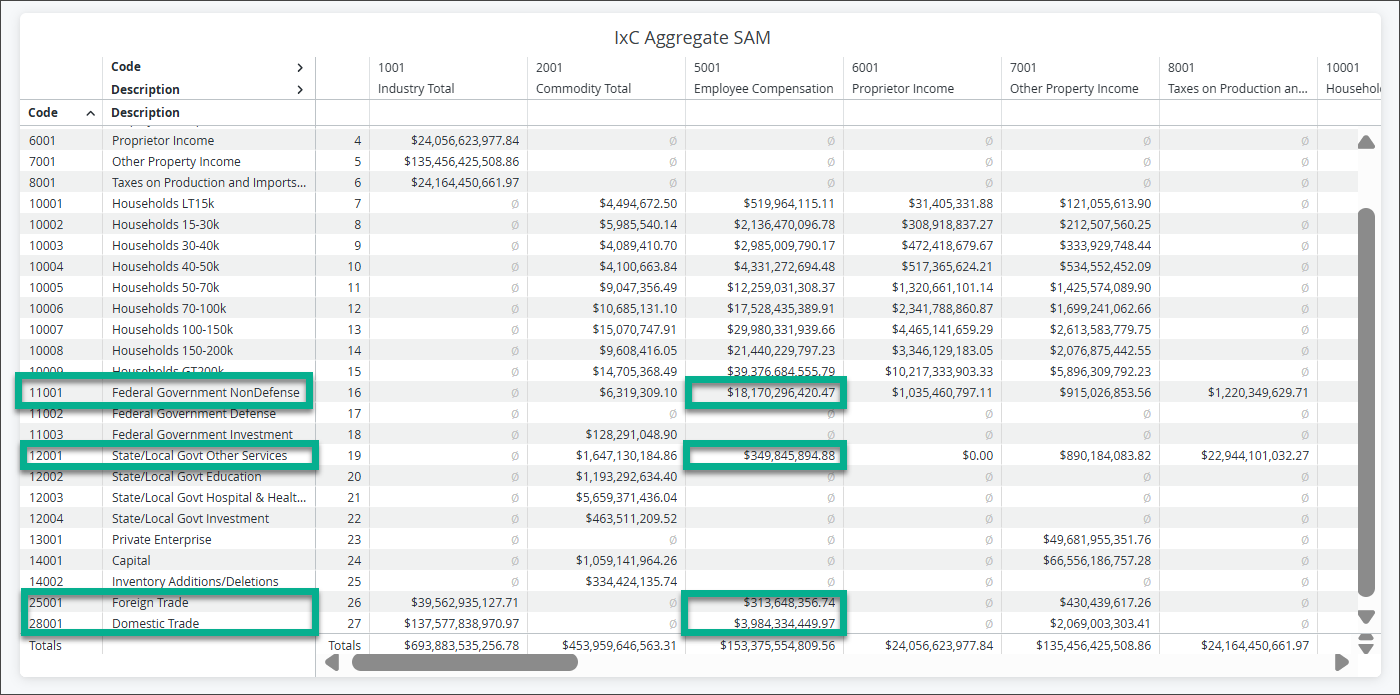

From there, we can find the in-commuting data for the Region in the Social Accounting Matrix (SAM).

Navigate to:

     Social Accounts

          > IxC Social Accounting Matrix

               > Aggregate IxC SAM

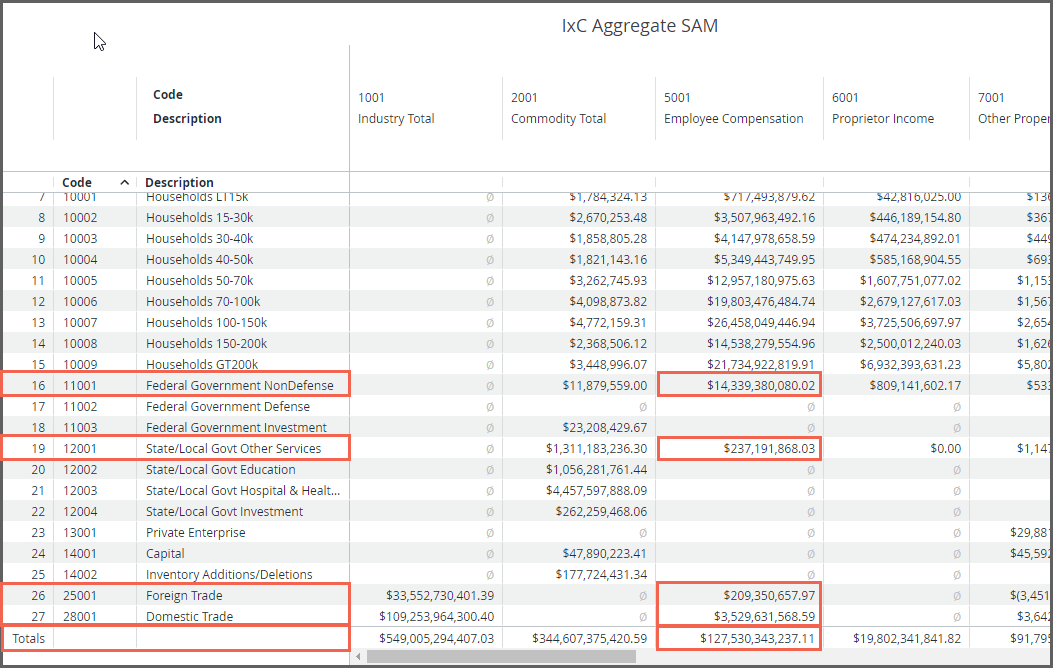

The SAM can be interpreted as columns making payments to rows. We will be focusing on the EC (5001) column.

The payments from the EC column to Federal Government Non-Defense (11001) and State and Local Government Other Services (12001) are payroll taxes. The payments from the EC column to the Domestic Trade (28001) and Foreign Trade (25001) rows are the post-payroll tax household income dollars paid to employees that work in the Region but do not live in the Region (i.e., in-commuters). This is referred to in IMPLAN as Commuter EC - the remaining portion of EC once payroll taxes are removed that flows out of the Region due to in-commuting.

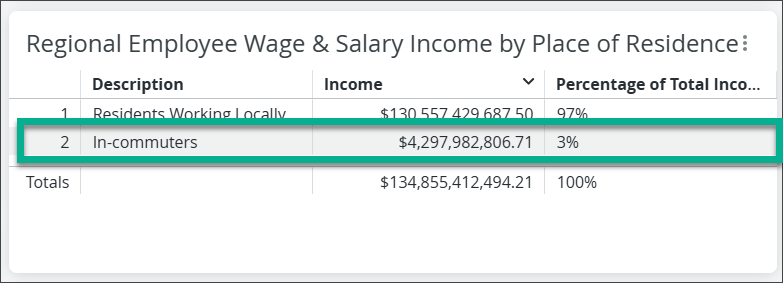

To get an estimate of the in-commuting rate for your region, sum the EC column's payments to the Foreign Trade and Domestic Trade rows and divide that sum by the total EC less EC's payments to Federal Government Non-Defense and State and Local Government Other Services. Below is an example from Louisiana in 2019.


EC Payroll Tax = EC payment to Federal Govt Non-Defense + EC payment to State/Local Government Other Services

                                     $14,339,380,080.02 + $237,91,868.03 = $14,576,571,948.05

Total Outflows of EC = EC payment to Foreign Trade + EC payment to Domestic Trade

                                     $209,350,657.97 + $3,529,631,568.59 = $3,738,982,226.56

In-Commuting Rate = Total Outflow of EC / (Total EC - Payroll Tax)

                                     $3,738,982,226.56 / ($127,530,343,237.11 - $14,576,571,948.05) = 3.31%

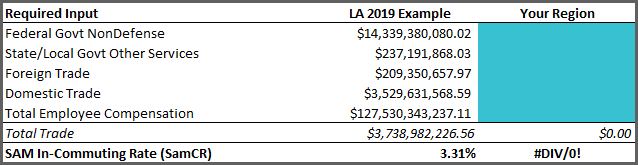

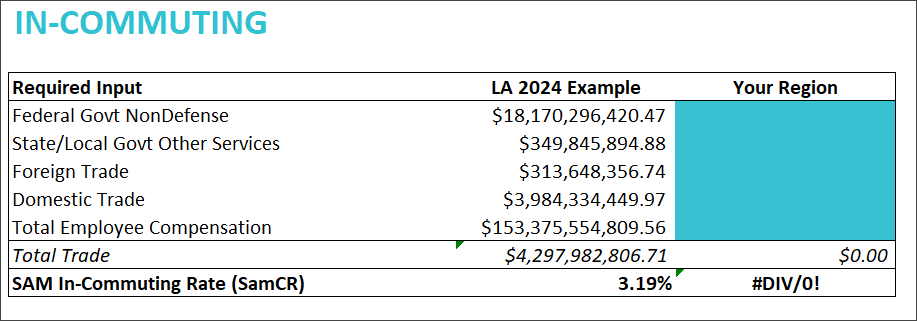

You can use the Commuting Rate - Calculations file to calculate the In-Commuting Rate for your Region by filling in the teal boxes.




Adjusting for your known in-commuting rate is necessary when IMPLAN’s in-commuting rate differs from yours, particularly when the difference is significant.

For example, if a new construction project was only hiring local workers from the Region, the analyst would want to adjust IMPLAN's SAM In-commuting rate to 0% so that none of the EC leaked out of the Region. There is currently no way to manually adjust or remove the SAM EC In-commuting rate applied to the construction Event. Therefore, we'll need to create an additional Labor Income Event to capture the change in Induced Effects from more or less EC staying in the Region.

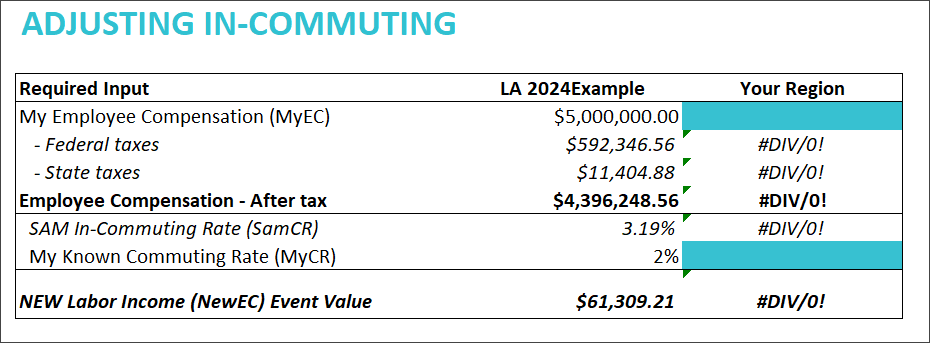

After calculating the Region's EC In-commuting rate as demonstrated above, use the 'Adjusting In-Commuting' table in the template to adjust IMPLAN's estimated regional commuting (SamCR) rate to your known regional commuting rate (MyCR). Using the construction example, if the project spent $5,000,000 on Employee Compensation in Louisiana we can assume that IMPLAN applied the 3.31% after-tax commuting rate, but we know that all of the workers were local so we want the commuting rate to be 0%.

The template will automatically calculate the input value for the second Labor Income Event using the following four variables:

       MyEC = original, unmodified Employee Compensation

       MyCR = your known commuting rate

       SamCR = commuting rate reported in the SAM

       NewEC = the adjusted EC value you want to use when running the analysis

Remember, your known commuting rate (MyCR) needs to be the value of the Employee Compensation that leaves the region after payroll taxes are removed!

So the formula is:

       NewEC = MyEC* [ (1-MyCR) / (1-SamCR) ] - MyEC

For our LA construction example, we see

       NewEC = $5,000,000 * [ (1-0.00%) / (1-3.31%) ] - $5,000,000 = $171,175.64

This number, $171,175.64 is what you will input for the Labor Income Event specified as Employee Compensation.

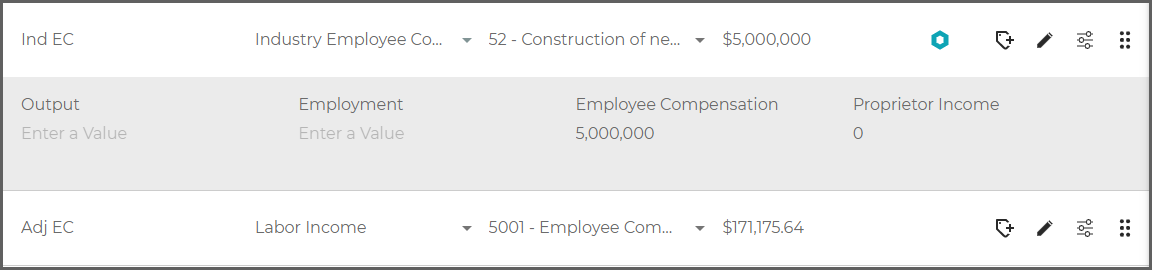

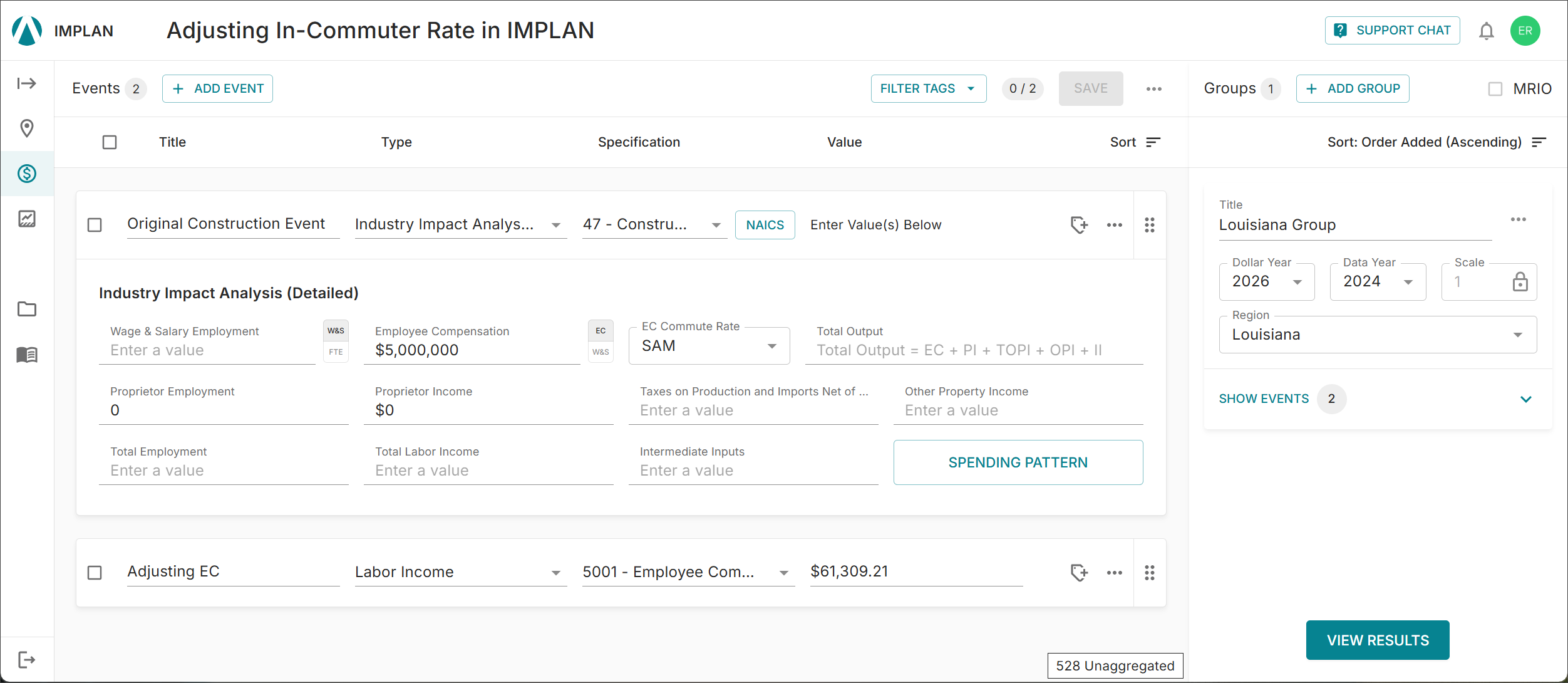

Now we can set up both Events in IMPLAN; an Industry EC Event in Industry 52 - Construction of new power and communications structures and the Labor Income Event for Employee Compensation.

In this example, $5,000,000 was analyzed in an Industry Employee Compensation Event in Industry 52 - Construction of new power and communications structures.  In our example, we know that we don’t want to estimate any additional Proprietor Income so we will zero that out. However, if we had any additional information such as Output or Employment, we can also utilize the advanced fields to input those values. Note that our Group Dollar Year is 2022, and the Data Year is 2019.

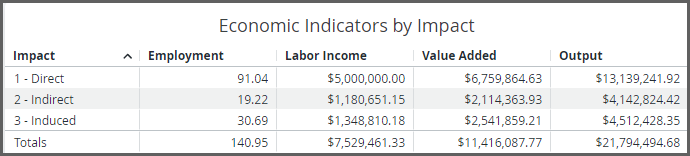

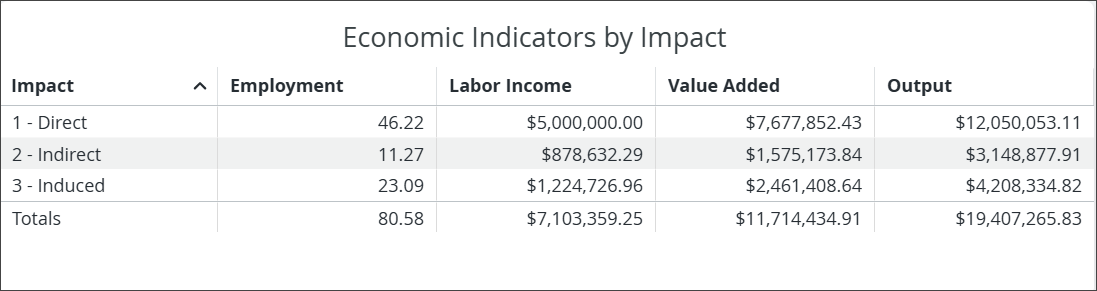

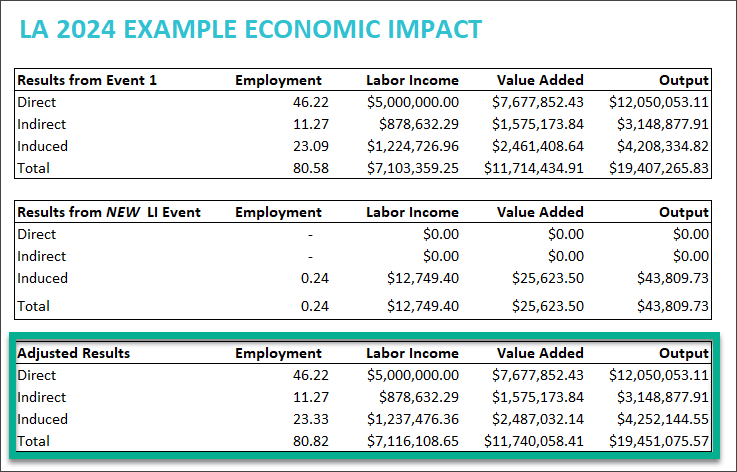

Once you have run the two Events and navigated to the Results screen, filter for the Industry Event. This Event will produce the Direct, Indirect, and Induced Effects from the construction project. Enter those results in the first table, labeled Results from Event 1.

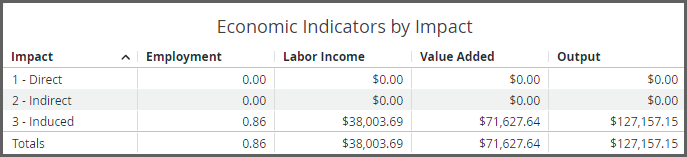

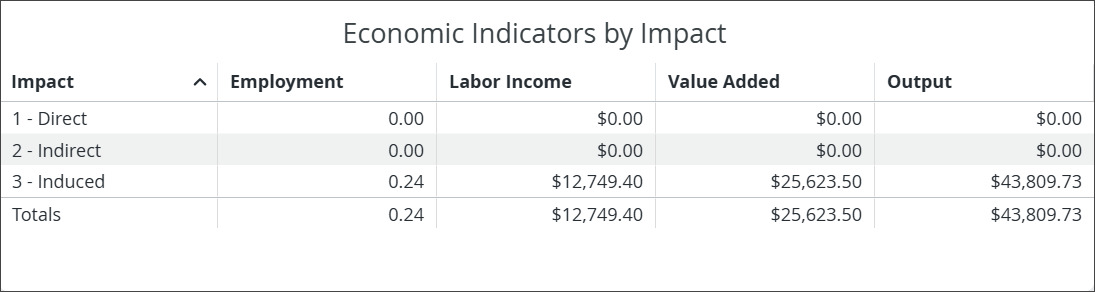

Repeat this process for the second Event, pasting the results into the the second table labeled Results from NEW LI Event. This Event will only produce Induced Effects.

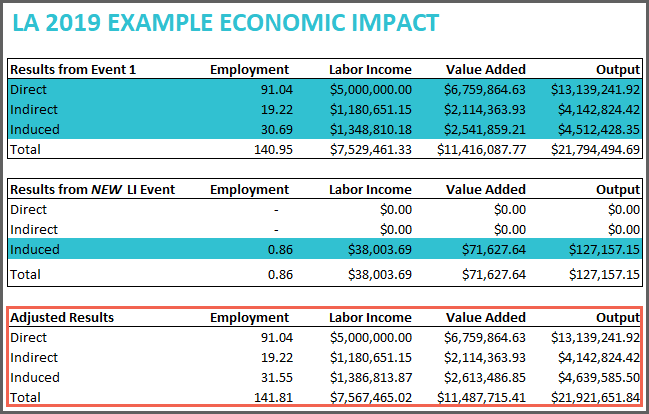

The template will add automatically sum results from the two Events. The Adjusted Results are the values to report in your analysis, as they are adjusted to account for your known Commuting Rate.




The same technique works for cases of the opposite direction as well - that is, when your known in-commuting rate is higher than IMPLAN's (i.e., you have more leakage of Commuter EC than IMPLAN shows).  In such a case, the NEW Labor Income Event will have negative input values and Results.

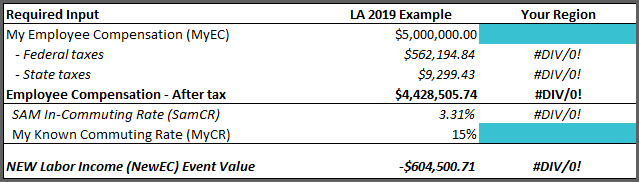

Using the Construction example, let's say that we know 15% of the EC is earned by workers who live in another Region. Here the NEW Labor Income Event Value would be -$604,500.71. The negative Induced Effects would reduce the original Results, as this scenario has more EC leaked from the Region to generate effects elsewhere.
