Using Occupation Data in IMPLAN

INTRODUCTION

IMPLAN has added its Occupation by Industry data to the IMPLAN application and Data Library. These datasets show estimates of Occupational Employment, wages, hours, and core competencies (knowledge, skills, abilities, education, work experience, and on-the-job training levels) for each of 800+ distinct occupations. Occupation data is available for all U.S.-based models, including models of combined regions, aggregated Industry models, and customized models. These data are not available for the Canada Provincial or International Products.

There are two different ways of viewing the Occupation Data in the application: Regional Occupation Data and Occupation Impact Data. Regional Occupation Data shows the occupations, wages, and core competencies that are already present in the region a user is studying. Users can find this data in Region Details in the Occupation Data tab. Occupation Impact Data shows the details for the occupations, Wages, and core competencies that accompany a specific impact or contribution.

HOW TO ACCESS OCCUPATION DATA

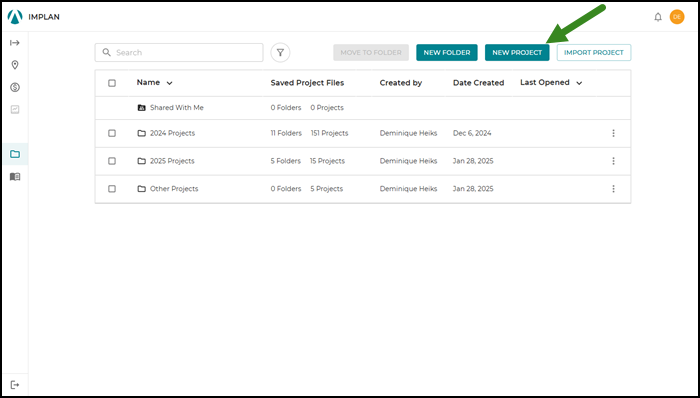

One way to access the data is by clicking the Projects tile on the IMPLAN Dashboard. On the Projects page, click New Project in the top right of the screen.

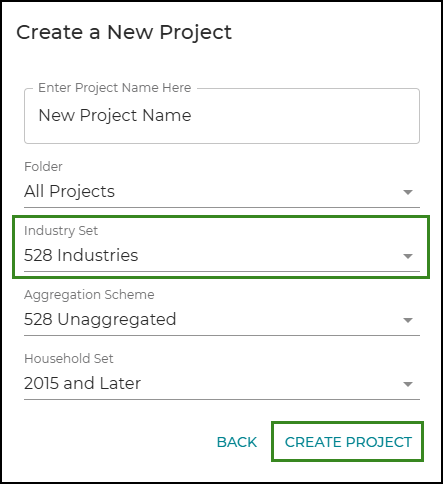

A pop-up window will appear to create a new project. The Industry Set should be set to the 528 Industries. This Industry Set is specifically for the U.S. and U.S. Territories data. After the correct Industry Set is selected, name the project, then click Create Project.

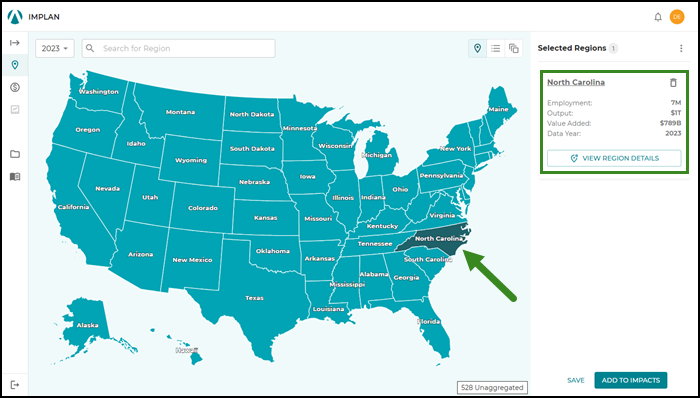

After creating the Project, the Regions screen will appear in the Map View of the U.S. Select a Region by clicking on the map, using the Search Bar, or from the List View.

There are three areas where Occupation Data can be accessed in IMPLAN: Region Details, Data Library, and Project Results.

REGIONAL OCCUPATION DATA

The tables located in the Region Details provide insight into the model Region’s occupation makeup. Descriptions of the data found here are detailed in our Occupation Data - Region Details article. The same data can also be accessed from the Data Library for all U.S. states and counties.

OCCUPATION IMPACT DATA

The Occupation Impact Data shows the details for the Occupations, Wages, and Core Competencies that accompany a specific impact or contribution in the Results tab. Descriptions of the data found here are detailed in our Occupation Data article.

• The Occupation Impact dashboard includes a single table detailing regional employment and wage impacts by occupation. Use the filters to limit the results to the desired Region, Group, Event, and Industry. The Occupation Aggregation Level Filter can also be used to select a different occupation aggregation level.
• The Occupation Impact Averages dashboard includes a single table detailing the average regional employment and wage impacts by occupation. Use the filters to limit the results to the desired Region, Group, Event, and Industry. The Occupation Aggregation Level Filter can also be used to select a different occupation aggregation level.
• The Core Competency dashboard includes tables for each core competency category (Ability, Knowledge, Skills, Education Required, Work Experience Required, On-the-Job Training Required). Use the filters to limit the results to the desired Region, Group, Event, and Industry. The Occupation Aggregation Level Filter can also be used to select a different occupation aggregation level.

DATA SOURCES

There are four main sources for the IMPLAN Occupation Data. The most recent data years for each are utilized for each Data Year.

• Bureau of Labor Statistics (BLS) Occupational Employment and Wage Statistics (OEWS)
  • http://www.bls.gov/oes/
  • Provides data on employment and wages by occupation and by industry
  • Released annually
• BLS Employment Projections national industry by occupation matrix
  • https://www.bls.gov/emp/tables/industry-occupation-matrix-industry.htm
  • Provides data on employment by occupation and by industry for some industries not covered by OEWS (Commercial fishing, Commercial Hunting and Trapping, Private Households)
  • Released biennially (though an additional release was made in 2019)
• Census Bureau American Community Survey (ACS) Public Use Microdata Sample (PUMS)
  • http://www.census.gov/acs/www/data_documentation/public_use_microdata_sample/
  • Provides data on hours worked by employer type, occupation, and industry
  • Released annually
• O*NET™ is a trademark of the U.S. Department of Labor, Employment and Training Administration
  •  www.onetonline.org
  • Provides data on knowledge, skills, abilities, education, work experience, and on-the-job training by occupation.
  • A new database version is released whenever updates are made.

ADDITIONAL INFORMATION

Occupation data can be used to examine a study area to gain important insights into a Region’s existing labor force, the skill requirements of various Industries, and more. The Occupation Data can also be seen in the Results of any impact or contribution analysis run within the IMPLAN application.

The data levels generally correspond to the BLS’s Standard Occupational Classification (SOC) codes. Major is the most aggregated, followed by Minor, Broad, and Detail. All data is based on national averages but brought to the regional level in IMPLAN by applying national level ratios to the regional industry mix. As with Employment, you may see fractional Occupations, especially for small firms where a few employees are spread across multiple Occupations.

The SOC categorizes occupations into several levels of detail, including 800+ detailed occupations which comprise 400+ broad groups, ~100 minor groups, and 23 major groups.  For example, the 2018 occupation data had the following occupation counts by level:

Occupational data are reported for the Wage and Salary Employment component of Total Employment only, and therefore only for the Employee Compensation component of Labor Income. Proprietors are excluded from occupation-related data. This maintains consistency with OEWS’ coverage of “employees” only.
